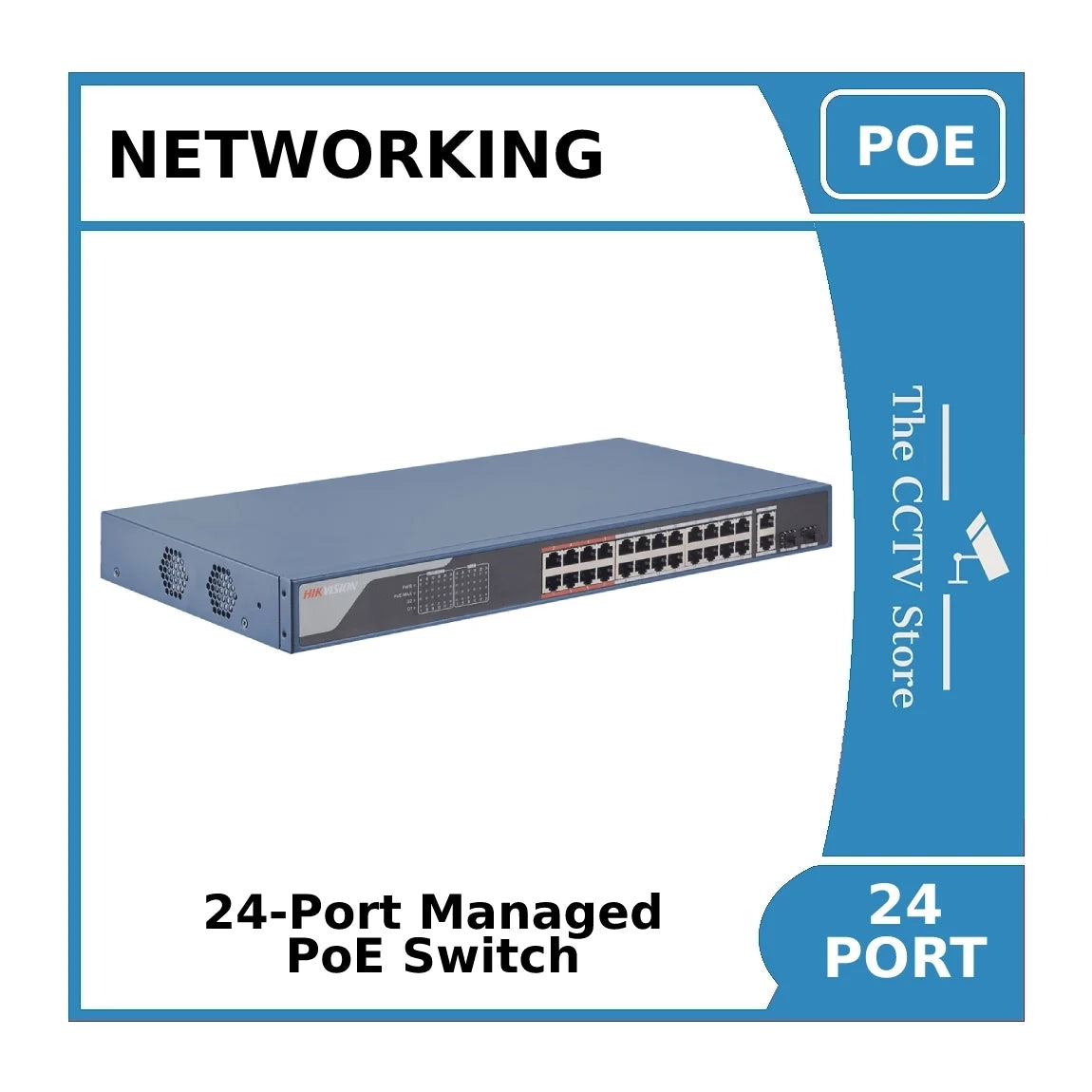

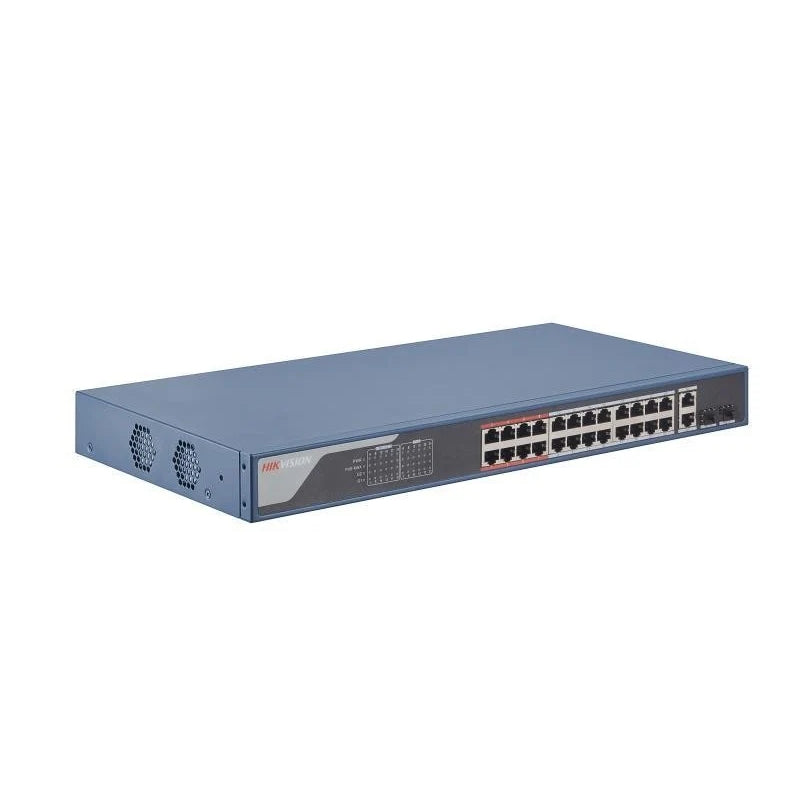

Hikvision DS-3E1528P-EI 24-Port Gigabit Smart Managed PoE+ Switch 370W

Description

Hikvision DS-3E1528P-EI 24-Port Gigabit Smart Managed PoE+ Switch 370W

The Hikvision DS-3E1528P-EI is a 24-port Gigabit Smart Managed PoE+ switch designed for professional IP CCTV and network installations. It provides 24 Gigabit PoE ports for connecting and powering compatible IP cameras over a single network cable, with a generous 370W total PoE power budget.

The switch also features 2 Gigabit RJ45 uplink ports and 2 Gigabit fibre optic ports, providing flexible connectivity for larger surveillance networks. It supports IEEE 802.3af and IEEE 802.3at PoE standards, with up to 30W available per PoE port.

For longer cable runs, Ports 1 to 24 support Hikvision's long-range PoE mode, allowing transmission distances of up to 300 metres when compatible cameras and suitable cabling are used. The switch also includes PoE watchdog functionality, which can automatically detect and restart unresponsive cameras.

With smart network management features including VLAN, port isolation, link aggregation, QoS, STP/RSTP loop prevention, DHCP snooping and cable detection, the DS-3E1528P-EI is suited to medium and larger IP surveillance systems.

Features

• 24 × Gigabit PoE RJ45 ports
• 2 × Gigabit RJ45 uplink ports
• 2 × Gigabit fibre optic ports
• 370W total PoE power budget
• Up to 30W per PoE port
• IEEE 802.3af and IEEE 802.3at PoE support
• Up to 300m long-range PoE transmission on Ports 1 to 24
• PoE watchdog for automatic camera restart
• VLAN and port isolation
• Static link aggregation
• QoS and STP/RSTP loop prevention
• DHCP snooping
• Cable detection
• 6kV surge protection
• Supports rack or desktop installation
• Compatible with Hikvision management platforms

Technical Specifications

The DS-3E1528P-EI is particularly suitable for IP CCTV installations requiring multiple PoE cameras, high PoE capacity and flexible network management.
