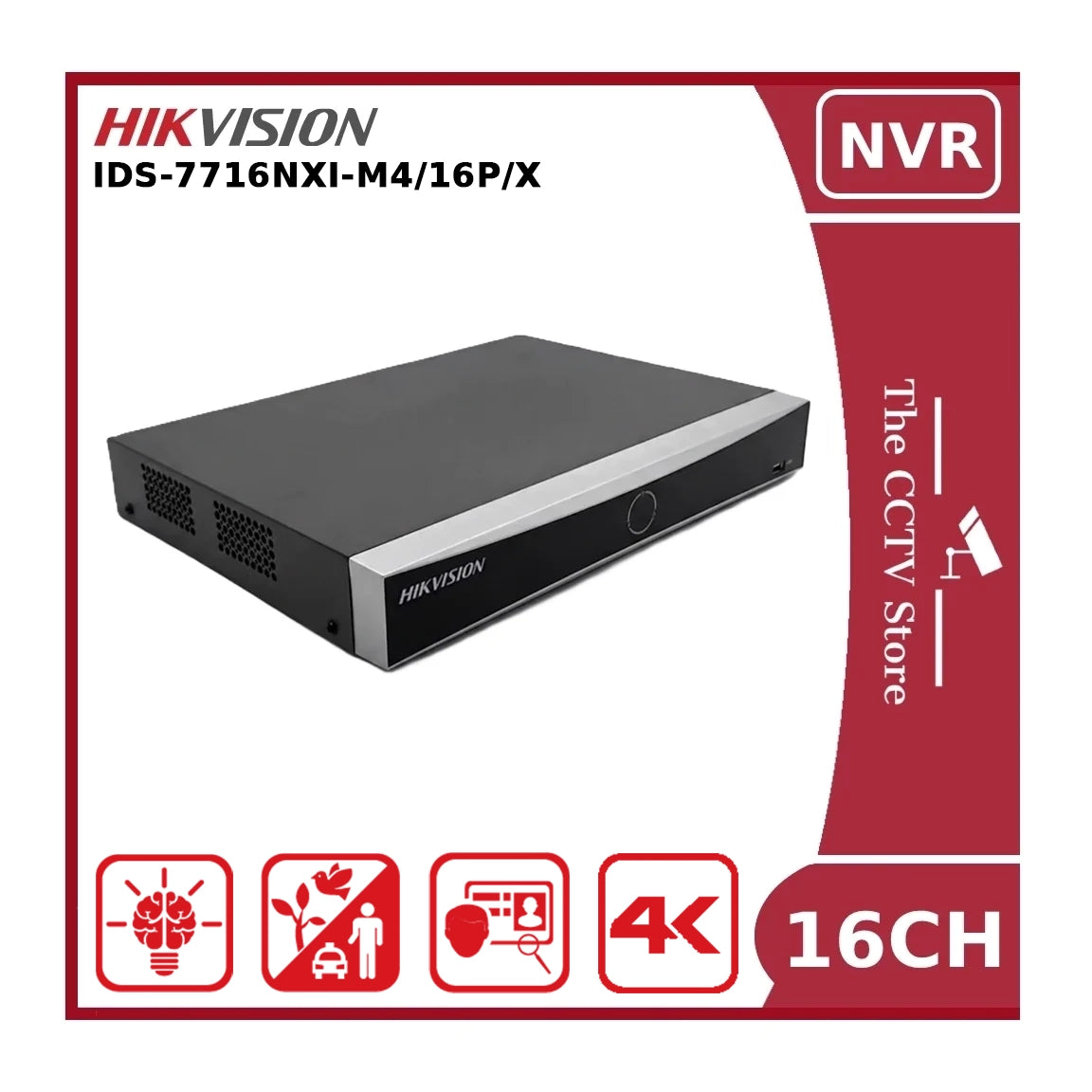

Hikvision iDS-7716NXI-M4/16P/X 16-Channel 8K DeepinMind NVR with 16 PoE Ports "NR"

Description

Hikvision iDS-7716NXI-M4/16P/X 16-Channel 8K DeepinMind NVR with 16 PoE Ports "NR"

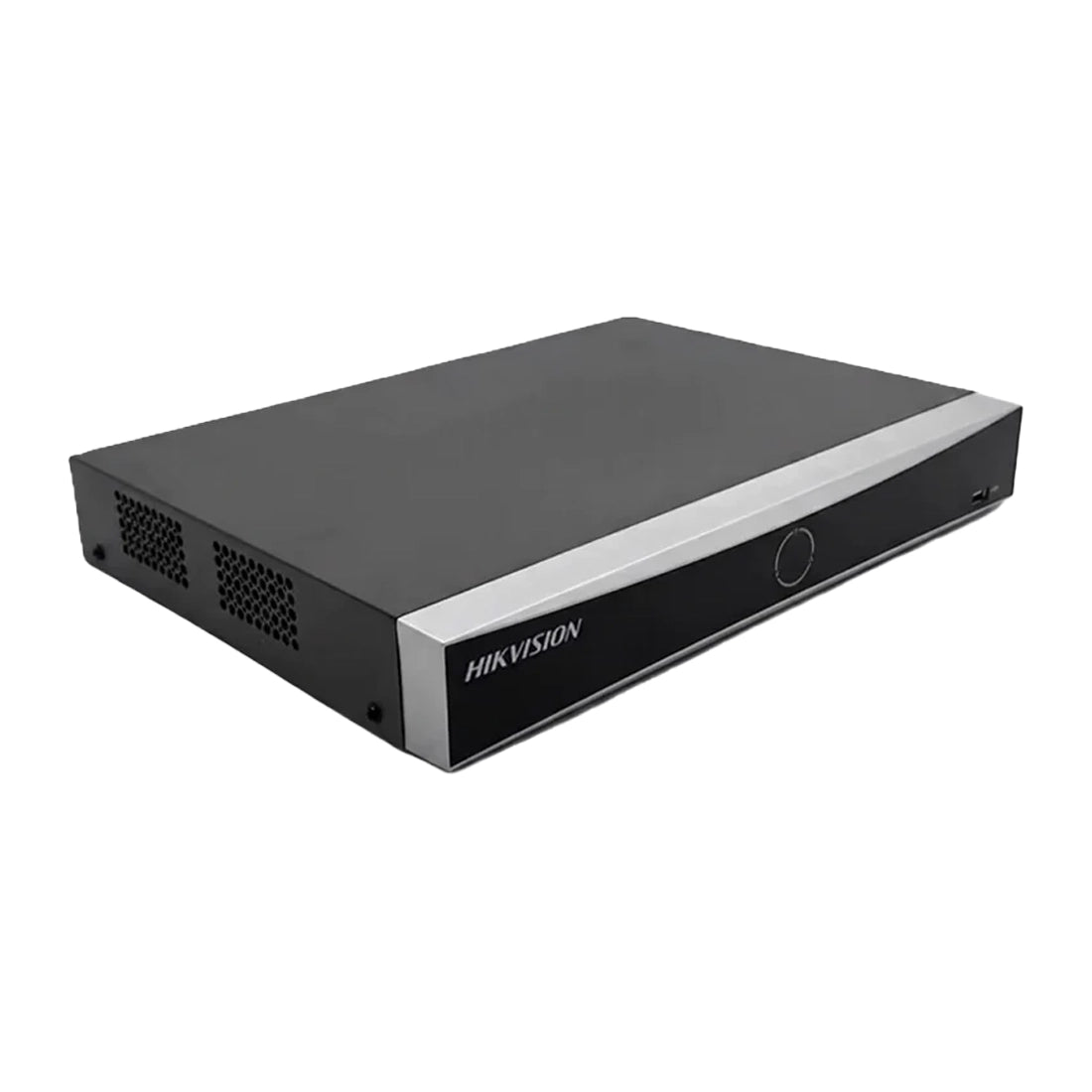

The Hikvision iDS-7716NXI-M4/16P/X is a professional 16-channel 1.5U DeepinMind network video recorder with 16 built-in PoE ports, advanced deep-learning analytics and up to 8K HDMI video output. It is designed for larger IP CCTV installations requiring advanced facial recognition, perimeter protection, video structuralisation and intelligent video search.

16-Channel IP CCTV Recording

The NVR supports up to 16 IP cameras and provides 16 integrated PoE network interfaces for plug-and-play connection and powering of compatible PoE cameras. The built-in PoE interfaces support IEEE 802.3af and 802.3at standards with a total PoE power budget of up to 200W.

8K Video Output

The iDS-7716NXI-M4/16P/X supports HDMI video output up to 8K resolution, as well as dual 4K output configurations. It provides independent HDMI and VGA outputs for flexible monitoring arrangements.

Advanced DeepInMind AI

DeepInMind technology uses deep-learning algorithms to provide advanced intelligent video analysis. The NVR supports facial recognition, perimeter protection, video structuralisation and AcuSearch functions.

Facial Recognition

The recorder supports up to 16-channel facial recognition for video streams or up to 16-channel facial recognition using face pictures. This allows compatible cameras and applications to be integrated into more advanced security monitoring systems.

Perimeter Protection

Up to 16 channels of perimeter protection are supported. Compatible intelligent cameras can provide functions such as line crossing and intrusion detection, helping reduce unwanted alarms by using intelligent target classification.

Video Structuralisation

The NVR supports up to 12-channel video structuralisation, providing advanced analysis of compatible camera footage for more detailed video searching and investigation.

High-Resolution Decoding

The NVR supports high-resolution IP camera streams and provides decoding capacity of up to:

• 2-ch @ 32MP
• 2-ch @ 24MP
• 4-ch @ 12MP
• 8-ch @ 8MP
• 16-ch @ 4MP

It supports H.265+, H.265, H.264+ and H.264 video formats.

Four SATA HDD Bays

The recorder provides four SATA interfaces for 3.5-inch hard drives. Each HDD can support up to 14TB capacity according to the Hikvision specification. An eSATA interface is also provided for additional storage or compatible external devices.

Professional Network Connectivity

The NVR features a 10/100/1000 Mbps self-adaptive Ethernet interface and supports Hik-Connect and DDNS for remote network management. It also supports web access without requiring a plug-in.

Features

• 16-channel IP network video recorder
• 1.5U rackmount chassis
• Hikvision DeepInMind M Series
• 16 built-in PoE ports
• Up to 200W total PoE power budget
• IEEE 802.3af/at PoE
• Up to 32MP IP camera support
• Up to 8K HDMI video output
• Dual 4K output support
• Up to 16-channel synchronous playback
• Deep-learning intelligent analytics
• Up to 16-channel perimeter protection
• Up to 16-channel facial recognition
• Up to 12-channel video structuralisation
• AcuSearch
• H.265+ compression
• 4 × SATA HDD interfaces
• 3.5-inch HDD support
• eSATA interface
• 1 × Gigabit Ethernet port
• Hik-Connect and DDNS
• Independent HDMI and VGA outputs
• 16 alarm inputs and 4 alarm outputs
• 1 × RS-232
• 2 × RS-485
• 2 × front USB 2.0
• 1 × rear USB 3.0
• 1.5U chassis design
